INTELLIGENT CLASSROOM PRODUCTS

Screen Shot 2019-08-08 at 4.18.17 PM.png

Point de Vue has done various educational projects. On this page, you will find more information about the devices used for our intelligent classroom project.

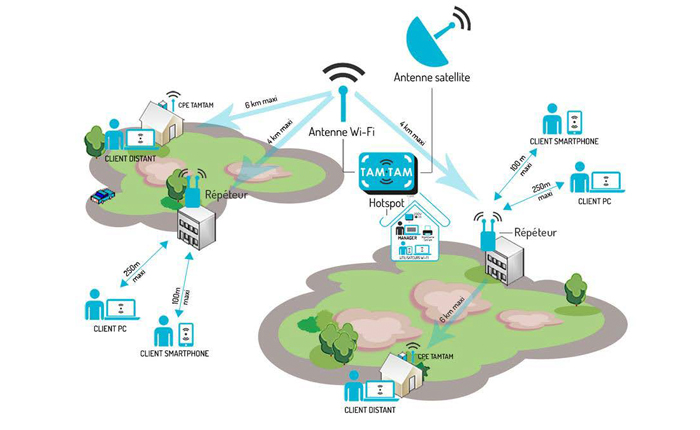

WIFI THROUGH SATELLITE

ABOUT WIFI THROUGH SATELLITE

The TamTam terminal is shipped as a pre-wired system in the enclosure, except for the components below, which are shipped separately for connection during installation.
• Newtec 1m VSA
• TWi-Fi antenna Installation consumables are purchased locally and include VSAT rack, Wi-Fi support, and grounding. Specifications for these are available upon request.

Options are available to extend the coverage to an entire village in need.

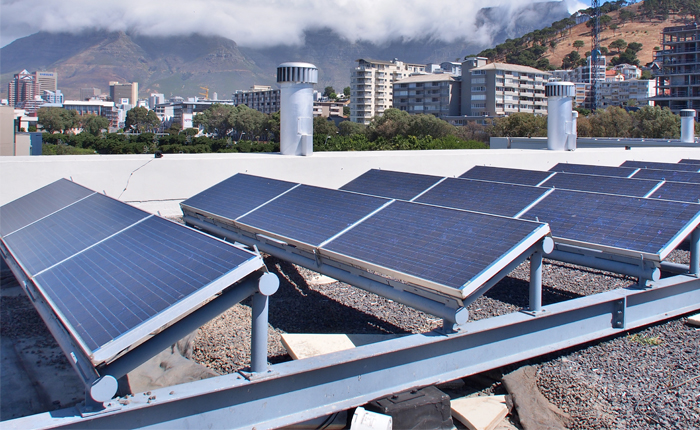

solar panels-2.jpg

TAMTAM DEVICES

400x280 tamtam.jpg

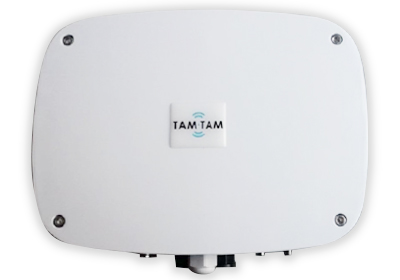

TAMTAM

  • WiFi through satellite connection
  • WiFi 802.11 b/g/n
  • 25dBm WiFi transmit power
  • Max. 60W power consumption

antenna 1.jpg

ANTENNA FOR TAMTAM

  • 2.4GHz Band
  • Available in 2 models

antenna 2.jpg

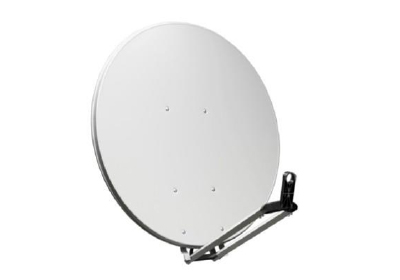

ANTENNA FOR TAMTAM (KA/KU BAND)

  • With weather protection (industrial/coastal)
  • 40mm diameter feed clamp
  • 1000mm aperture
  • 1150W/m2 solar radiation

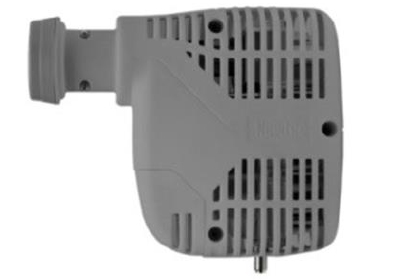

iLNB

  • Amplifier/receiver for TamTam
  • Converts the signal for use with coax cable indoors

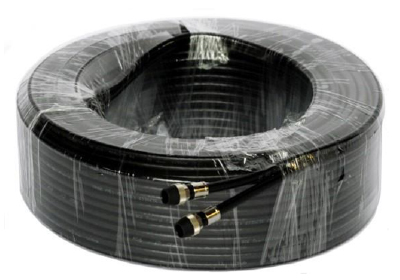

COAX CABLE

  • 0.5 up to 3.0GHz frequency range
  • IP67 weather protection (industrial/coastal)
  • 1120W/m2 solar radiation
  • Compliance to standards EN50117-2-4 and EN501117-2-5 (up to 3000MHz)

DEVICES

400x280 MAL.jpg

MANAGEMENT ACCESS POINT

  • Apollo Lake Celeron N3350 Processor
  • IP54 ruggedness
  • 4GB RAM & 16GB + 500GB HDD storage
  • Dual Band WiFi (2.4GHz+5GHz)
  • Up to 50 simultaneous connections
  • Up to 8h of battery life

pro server.jpg

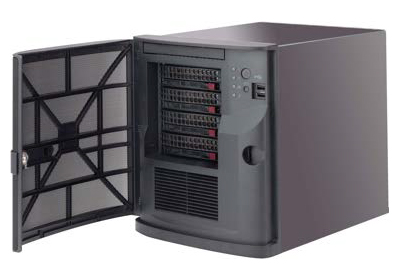

PROFESSIONAL SERVER

  • Intel Atom Processor
  • 8GB RAM + 1TB Storage memory
  • Windows 10 PRO or HOME software
  • Can be used by 50-250 per device simultaneously

interactive panel.jpg

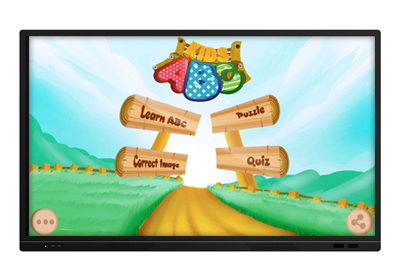

INTERACTIVE PANEL

  • 65", 75", 86" and 98"
  • Intel i3/i5 or Android base - ARM Quad Core Processor
  • Android 8.0 or Windows 10 PRO
  • 4GB DDR3 + 64GB
  • WiFi

400x280 cam.jpg

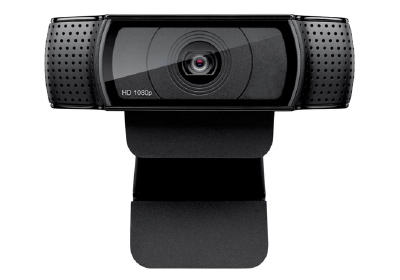

CAMERA FOR INTERACTIVE PANEL

  • 15MP 1080P Full HD Camera
  • Compatible for Android, Chrome, Mac and Windows
  • With auto focus and brightness adjustment
  • Built-in mic with noise reduction


CONTACT INFO

Rue des Jardins, Cocody
Abidjan
Cote D'Ivoire (Ivory Coast)

Tel / Whatsapp : +225 5741 2537 (Cote D'Ivoire)
Tel / Whatsapp : +234 803 455 3434 (Nigeria)

Email: contact@pointdevue-afrique.com


All of our products are subject to change and may be altered without prior notice
